Manufacturer of electric height adjustable desks ...
Product-groups    Products

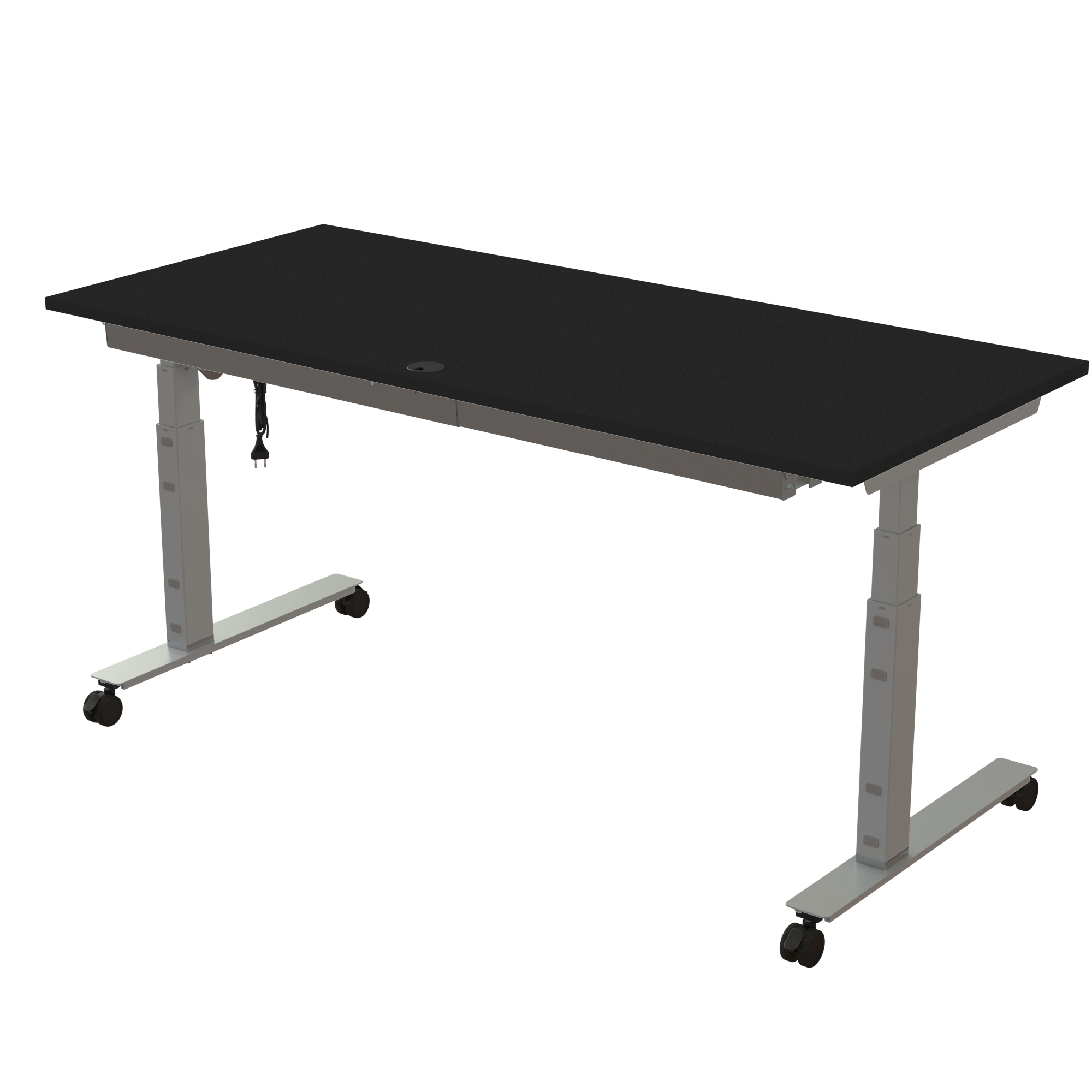

Ergonomic desk | 180x80 cm | Black with silver frame

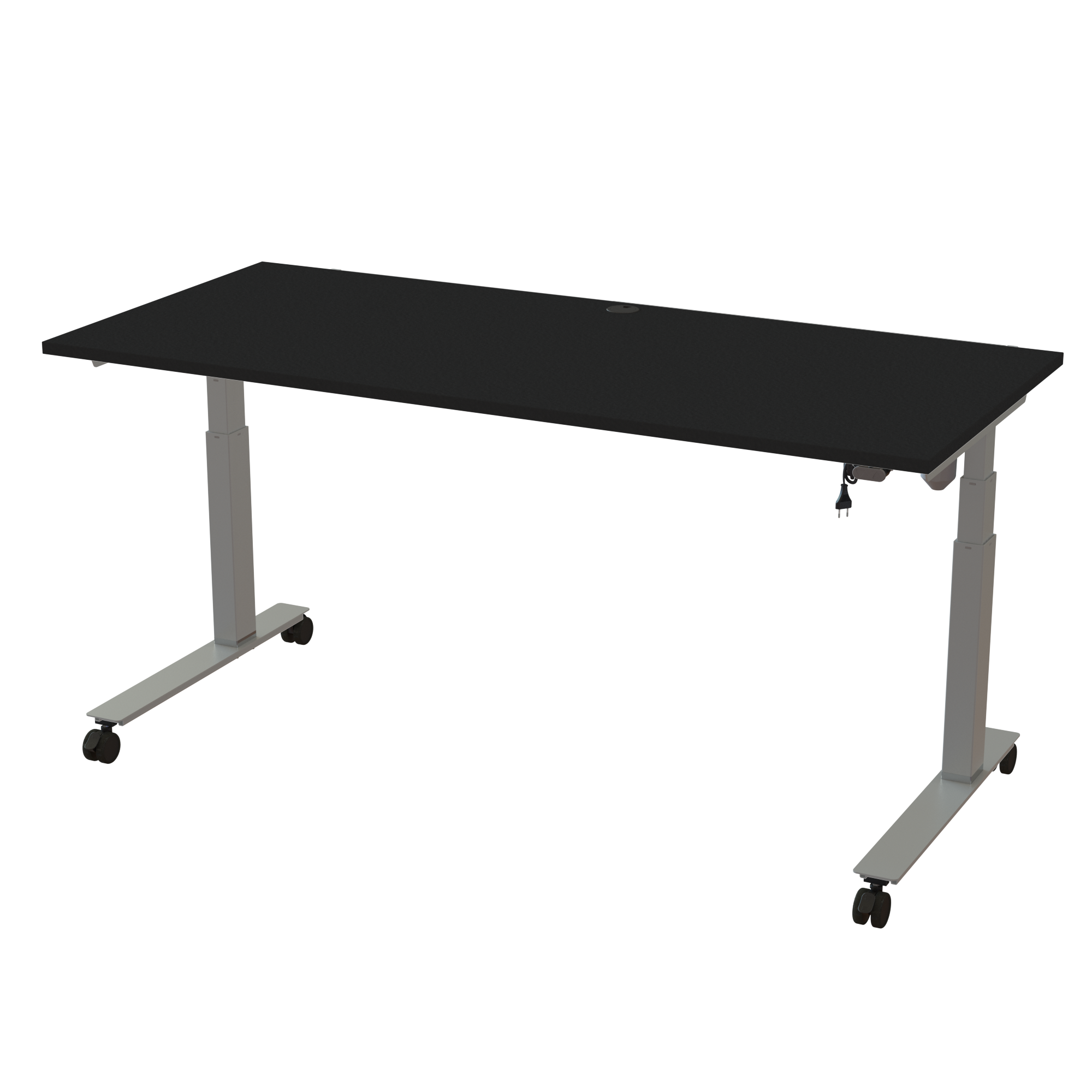

Ergonomic frame desk (180x80 cm) with a black melamine tabletop on a silver 501-35 desk frame
Ergonomic frame desk (180x80 cm) with a black melamine tabletop on a silver 501-35 desk frame
Ergonomic desk | 180x80 cm | Black  with silver frame
Ergonomic desk | 180x80 cm | Black  with silver frame
Ergonomic desk | 180x80 cm | Black  with silver frame
€ 636 ex VAT
Item no.: 523-35 7S172 180-80S3 NM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 180 x 80 cm tabletop format. The 3.5 cm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 61-128 cm height stroke for users starting at 150 cm. Built with an RAL 9006 (silver) frame colour, an black tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 37 min assembly time.

The desk features a standard two-arrow control panel designed for simple and reliable operation. Its durable switch-based construction minimizes complexity while ensuring long service life. The tactile buttons allow intuitive use without needing to view the panel. The desk comes with a cable tray mounted under the tabletop to maintain a clean look, using a smart hinged design for quick opening right under the cable grommet exit point. Mobile castors are attached to the legs, making it easy to roll the desk whenever needed. The layout is RAL 9006 (silver) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: black melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Frame Color
Add-Ons
Cable tray & Wheel ▼
Control Unit
Standard ▼
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
523-35 7S172 180-80S3 NM
Description:
Ergonomic desk | 180x80 cm | Black with silver frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XSXXXLifting column set, Silver€ 260,-€ 260,-
1501-XX XS075CFeet and brackets C80, silver€ 143,-€ 143,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1501-XX HXX2Wheel set, 501-37, black€ 38,-€ 38,-
1501-XX CS096-166Universal cable-tray, Silver€ 28,-€ 28,-
1180-80S3 NMDesk top | 180x80 cm | Black € 71,-€ 71,-

Total
€ 636,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS075C881169,205704142162507
501-XX 7XPOWA221190,705704142108666
SQ138890171534,205704142138892
501-XX HXX2121251,205704142159446
501-XX CS096-166888153,805704142144565
180-80S3 NM18787426,005704142162439
