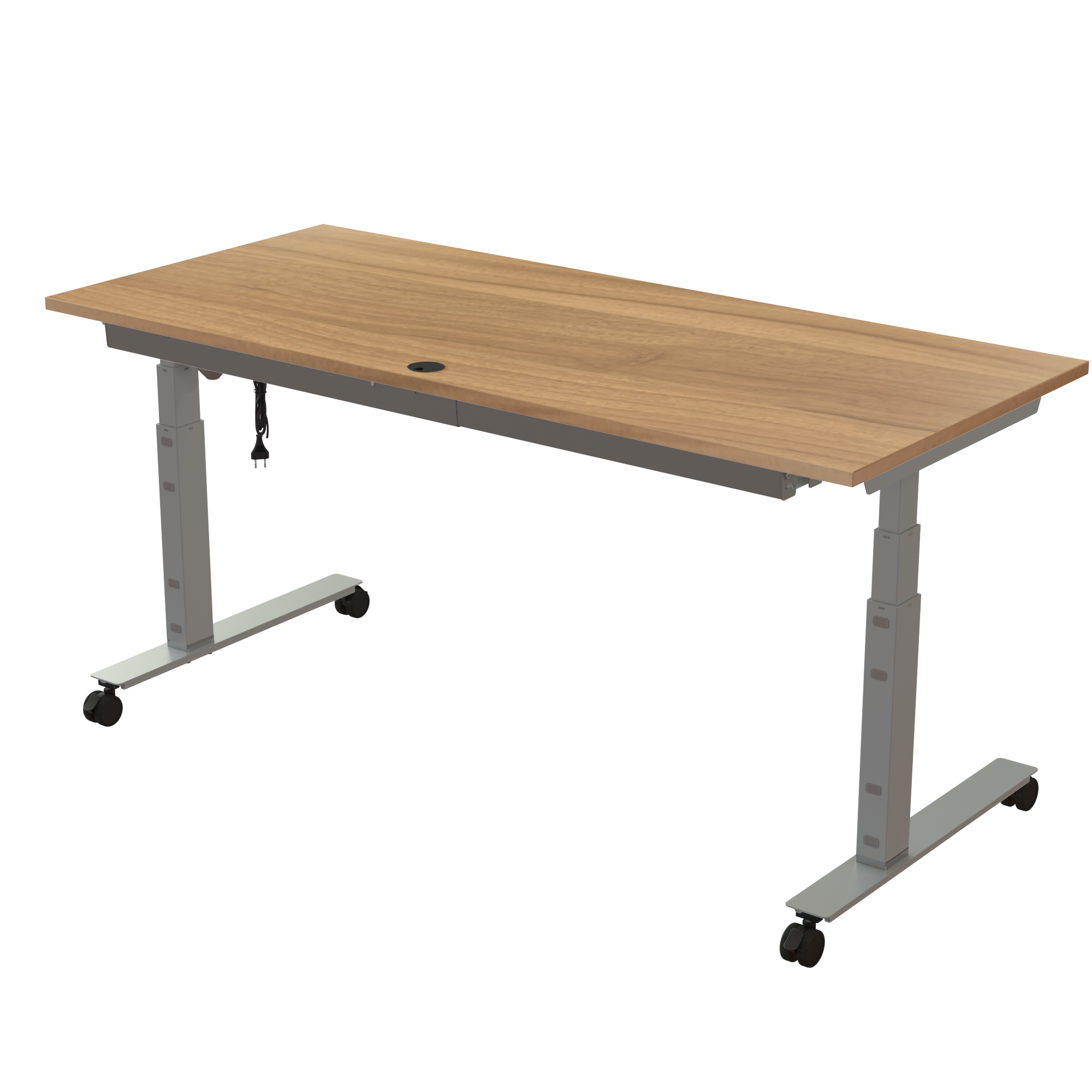

Ergonomic desk | 180x80 cm | Walnut with silver frame

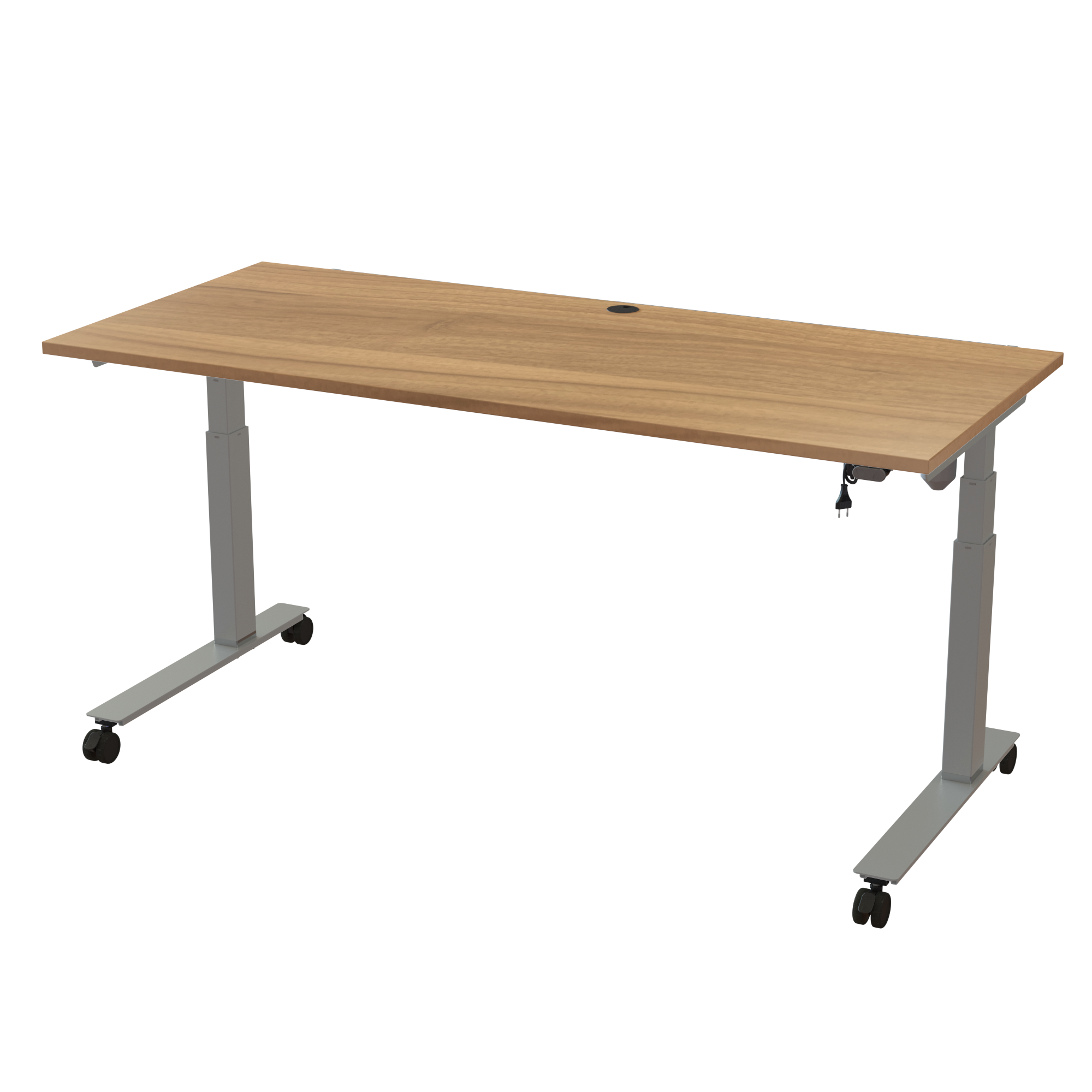

Ergonomic T-leg desk (180x80 cm) with a walnut melamine tabletop on a silver 501-35 desk frame
Ergonomic T-leg desk (180x80 cm) with a walnut melamine tabletop on a silver 501-35 desk frame
Ergonomic desk | 180x80 cm | Walnut with silver frame
Ergonomic desk | 180x80 cm | Walnut with silver frame
Ergonomic desk | 180x80 cm | Walnut with silver frame
€ 636 ex VAT
Item no.: 523-35 7S172 180-80S3 VM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 180 x 80 cm tabletop format. The 3.5 cm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 61-128 cm height stroke for users starting at 150 cm. Built with an RAL 9006 (silver) frame colour, an walnut tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 37 min assembly time.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down. The desk includes functional castors that allow for quick and easy relocation, as well as a standard cable tray integrated under the tabletop. Utilizing a hinged design that simplifies access, the tray sits directly below the cable grommet exit point to catch all wires. The cable tray is RAL 9006 (silver) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: walnut melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s dependable 1-motor system, tested for professional use
Frame Color
Add-Ons
Cable tray & Wheel ▼
Control Unit
Standard ▼
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
523-35 7S172 180-80S3 VM
Description:
Ergonomic desk | 180x80 cm | Walnut with silver frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XSXXXLifting column set, Silver€ 260,-€ 260,-
1501-XX XS075CFeet and brackets C80, silver€ 143,-€ 143,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1501-XX HXX2Wheel set, 501-37, black€ 38,-€ 38,-
1501-XX CS096-166Universal cable-tray, Silver€ 28,-€ 28,-
1180-80S3 VMDesk top | 180x80 cm | Walnut€ 71,-€ 71,-

Total
€ 636,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS075C881169,205704142162507
501-XX 7XPOWA221190,705704142108666
SQ138890171534,205704142138892
501-XX HXX2121251,205704142159446
501-XX CS096-166888153,805704142144565
180-80S3 VM18787426,005704142149805
