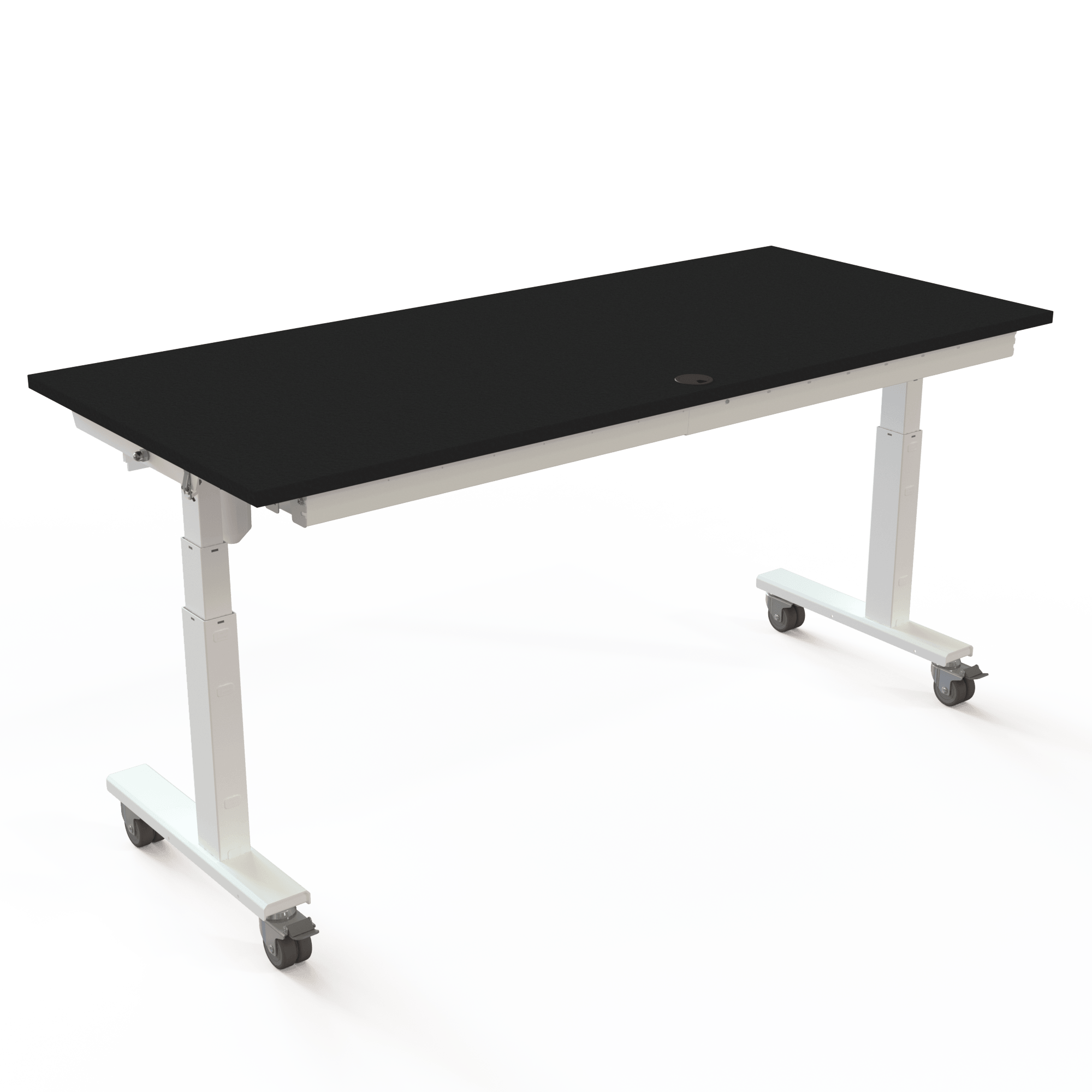

Ergonomic desk | 180x80 cm | Black with white frame

576-35 7W172 180-80S3 NM
576-35 7W172 180-80S3 NM
Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
€ 704 ex VAT
Item no.: 576-35 7W172 180-80S3 NM

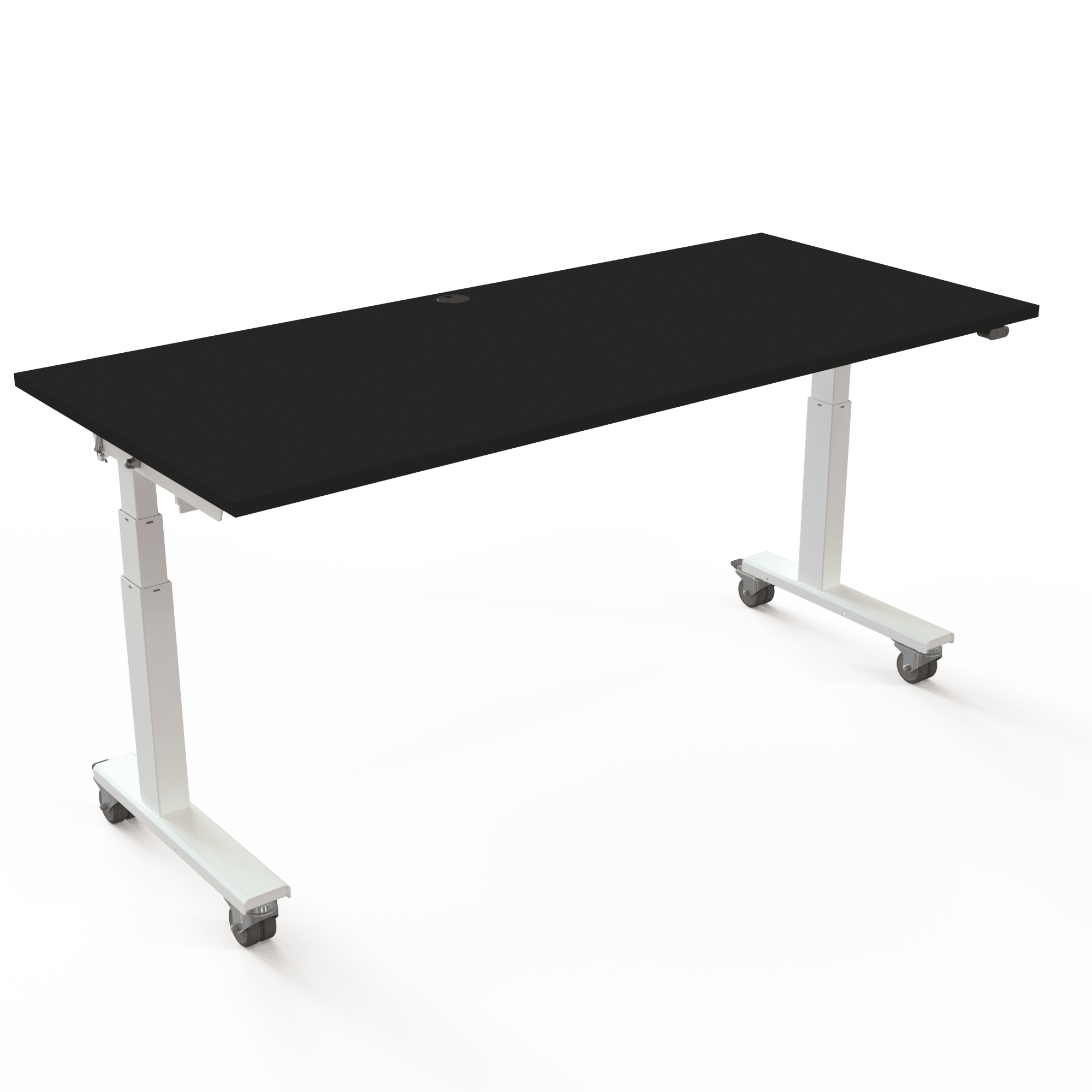

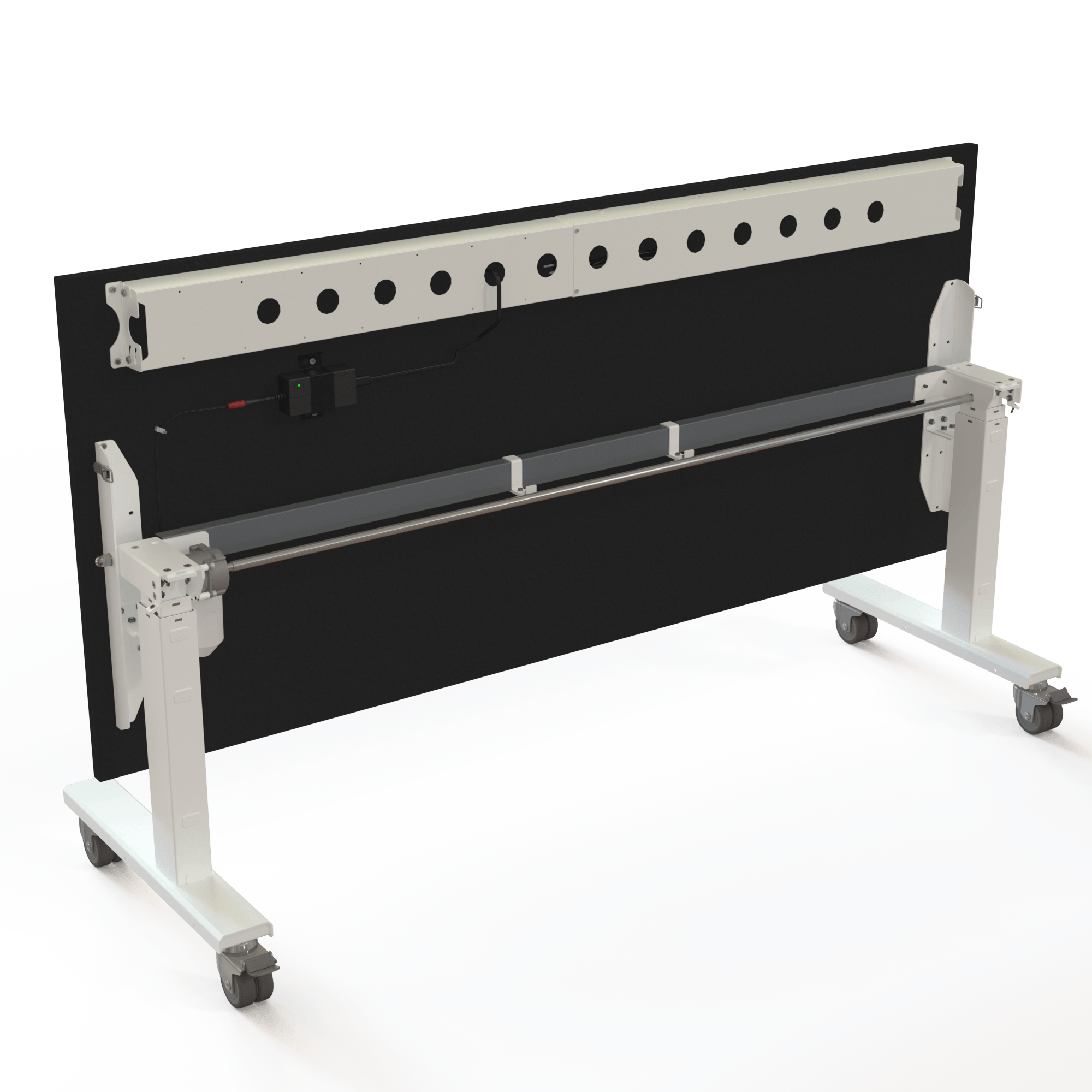

An electric height-adjustable training desk offering a 67-134 cm elevation range and a 40 kg lift capacity. The 90-degree tilting desktop makes it easy to roll on heavy-duty casters and nest several units together in storage closets or depots, complete with a tabletop-mounted cable tray. Assembly takes 44 min. Configured with a RAL 9016 (white) frame and a tabletop featuring black color with an melamine surface finish.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The 90-degree tilting top mounts with standard frame screws. Clips on both sides lock the tabletop securely whenever the desk is in use.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: black melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 67-134 cm
  • Lifting capacity: 40 kg
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor : ConSet’s dependable 1-motor system, tested for professional use
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Stock and components
Item no.:
576-35 7W172 180-80S3 NM
Description:
Ergonomic desk | 180x80 cm | Black with white frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XWXXXLifting column set, White€ 260,-€ 260,-
1501-96 XWXXXSet for 501-96, RAL 9016, White€ 140,-€ 140,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1LF750 HXXXCastorset, LF750€ 66,-€ 66,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1180-80S3 BMDesk top | 180x80 cm | Beech€ 71,-€ 71,-
1180-80S3 NMDesk top | 180x80 cm | Black € 71,-€ 71,-

Total
€ 704,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-96 XWXXX5921129,705704142161432
501-XX 7XPOWA221190,705704142108666
LF750 HXXX242482,605704142124468
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
180-80S3 NM18787426,005704142162439
