Manufacturer of electric height adjustable desks ...
Product-groups    Products

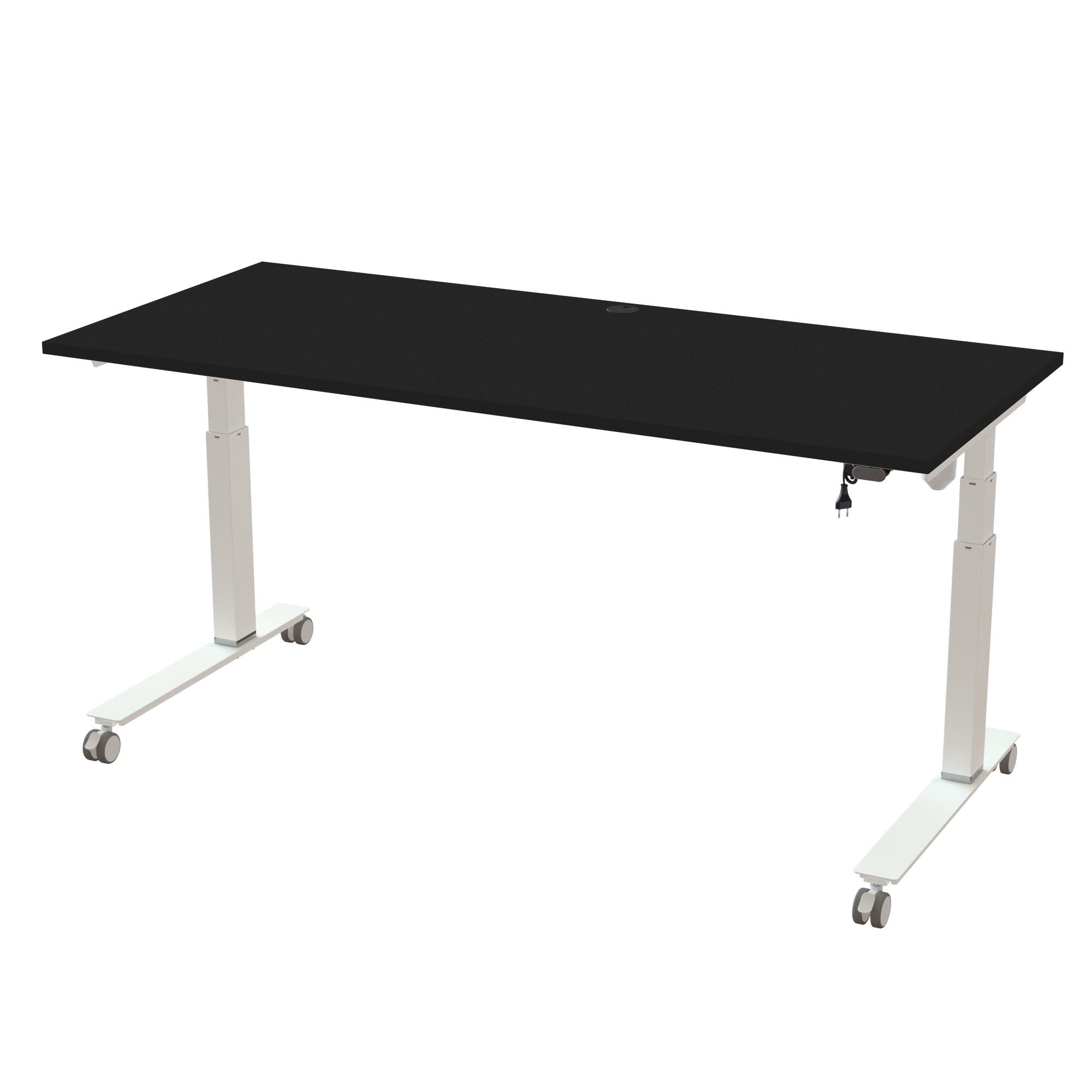

Ergonomic desk | 180x80 cm | Black with white frame

Ergonomic T-leg desk (180x80 cm) with a black melamine tabletop on a white 501-35 desk frame
Ergonomic T-leg desk (180x80 cm) with a black melamine tabletop on a white 501-35 desk frame

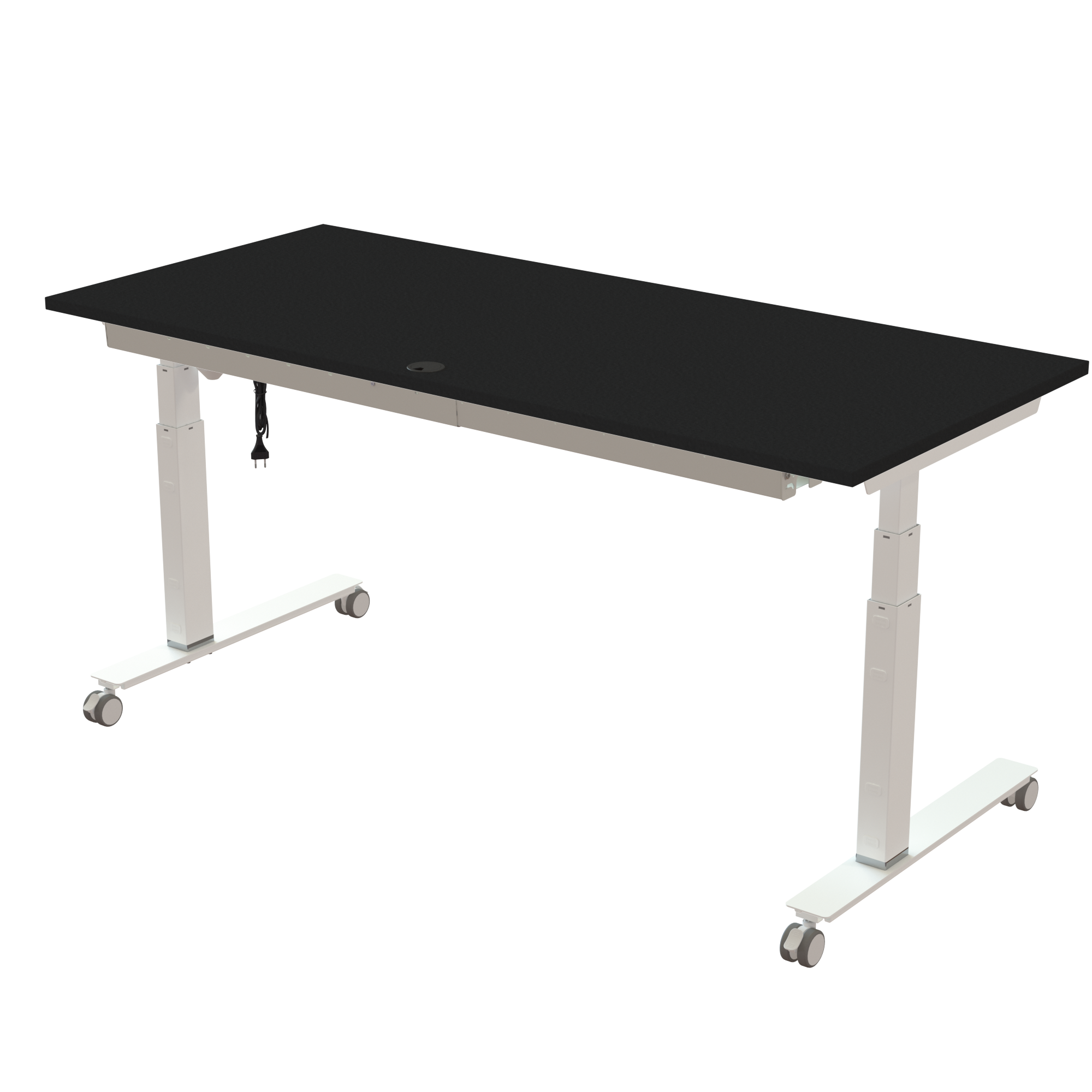

Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
Ergonomic desk | 180x80 cm | Black  with white frame
€ 636 ex VAT
Item no.: 523-35 7W172 180-80S3 NM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 180 x 80 cm tabletop format. The 3.5 cm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 61-128 cm height stroke for users starting at 150 cm. Built with an RAL 9016 (white) frame colour, an black tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 37 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. The desk comes with smooth-rolling castors for flexible room placement and includes a cable tray running along the underside of the tabletop. This cable tray provides a convenient hinged design for easy opening right beneath the cable grommet exit point, keeping wires completely out of sight. It is RAL 9016 (white) frame coloured to match the desk frame perfectly.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: black melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s strong and tried-and-tested 1-motor solution
Frame Color
Add-Ons
Cable tray & Wheel ▼
Control Unit
Standard ▼
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
523-35 7W172 180-80S3 NM
Description:
Ergonomic desk | 180x80 cm | Black with white frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XWXXXLifting column set, White€ 260,-€ 260,-
1501-XX XW075CFeet and brackets C80, white€ 143,-€ 143,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1501-XX HXX1Wheel set, 501-37, white€ 38,-€ 38,-
1501-XX CW096-166Universal cable-tray, White€ 28,-€ 28,-
1180-80S3 NMDesk top | 180x80 cm | Black € 71,-€ 71,-

Total
€ 636,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX 7XPOWA221190,705704142108666
SQ138890171534,205704142138892
501-XX HXX1121251,205704142152621
501-XX CW096-166888153,805704142144800
180-80S3 NM18787426,005704142162439
