Project desk 180-80 | White tops, White frame

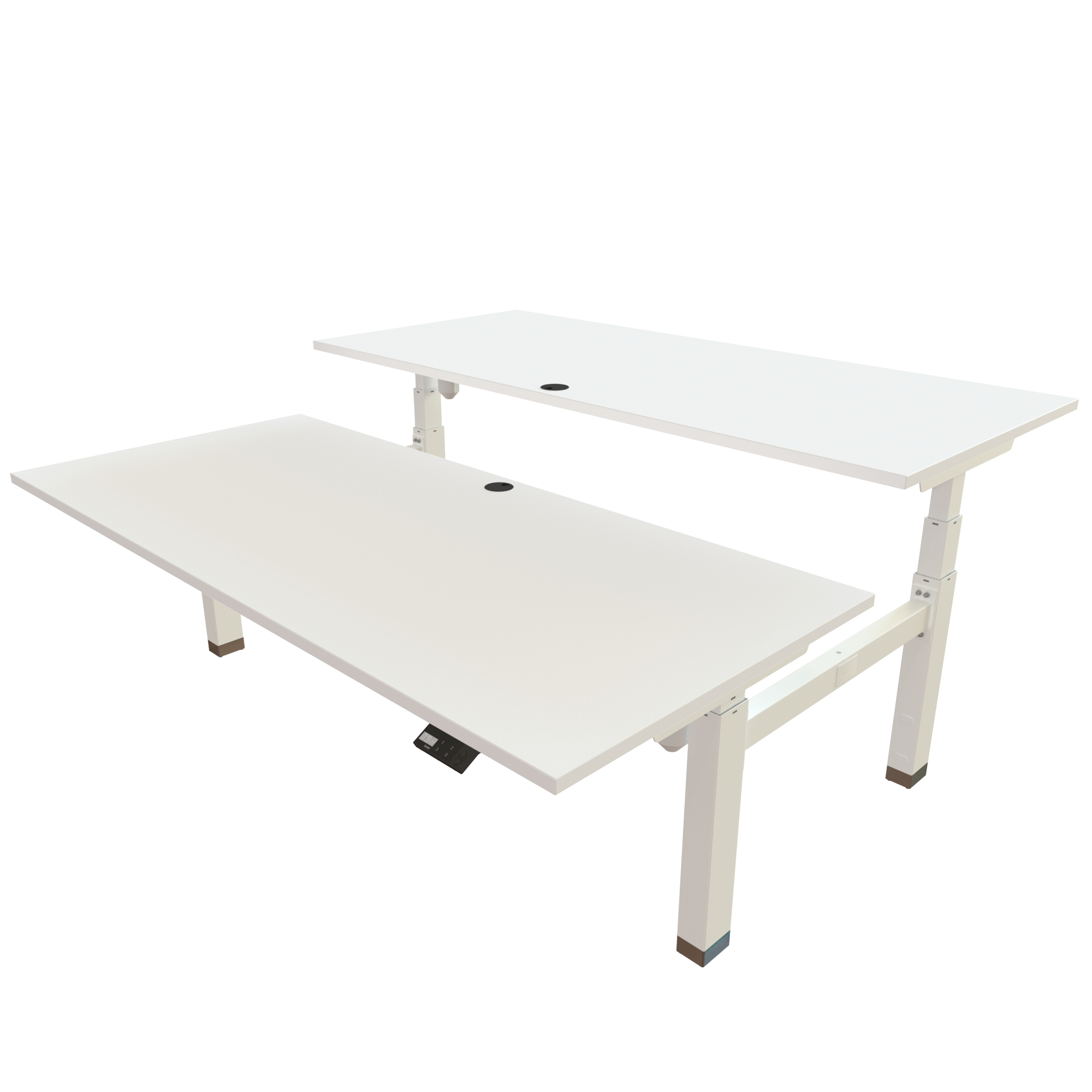

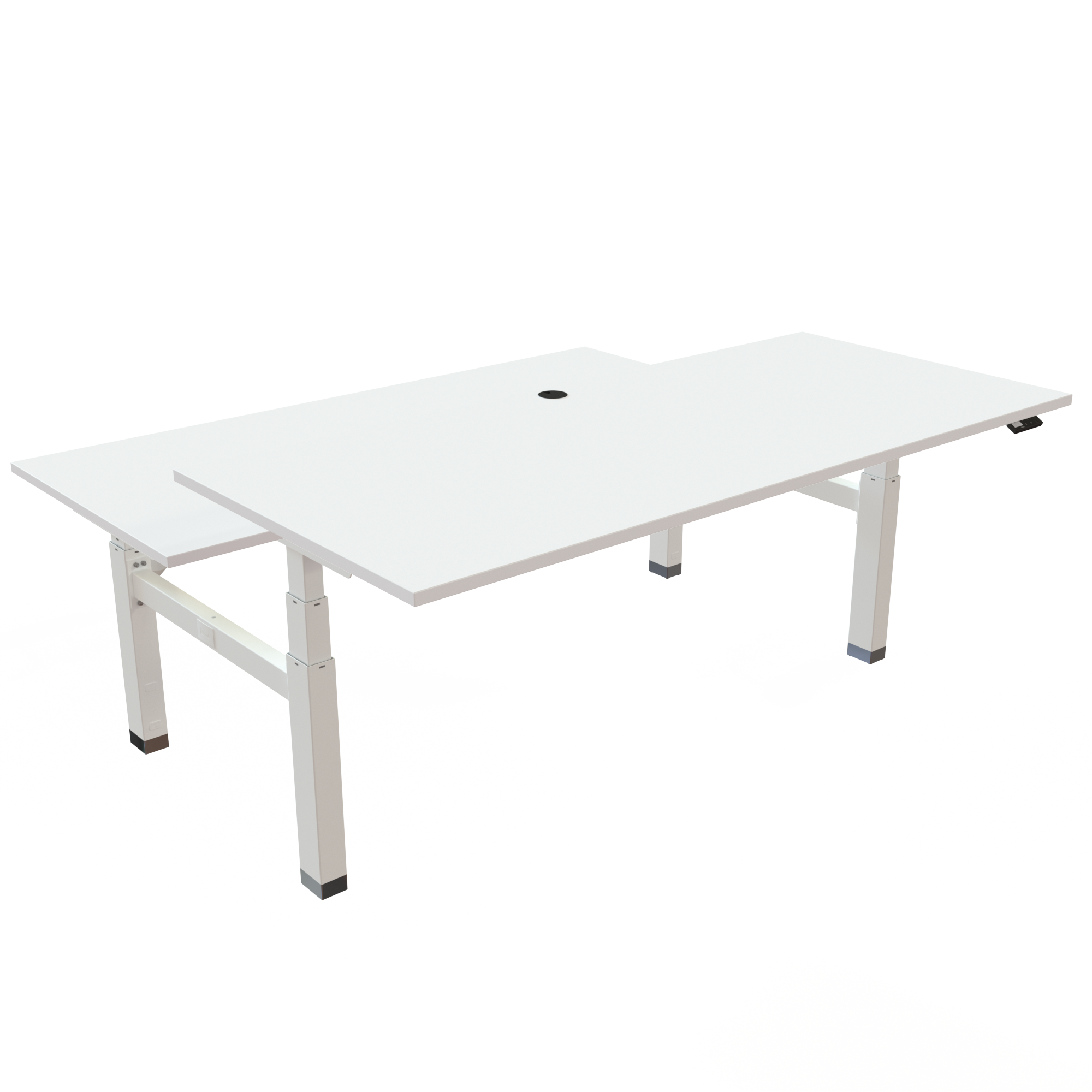

Ergonomic frame desk (180x80 cm) with a white melamine tabletop and memory controller on a white 481-35 desk frame
Ergonomic frame desk (180x80 cm) with a white melamine tabletop and memory controller on a white 481-35 desk frame
Project desk 180-80 | White tops, White frame
Project desk 180-80 | White tops, White frame
Project desk 180-80 | White tops, White frame
€ 1140 ex VAT
Item no.: 481-35 7W172 180-80S3 WM

The design of these Back-to-Back desks focuses on space optimization, structural unity, and a finished 3,5 cm chrome look at the base. By nesting two independent sit-stand stations onto one shared frame, it delivers a clutter-free office floor and a unified aesthetic that elevates any open-plan layout. Configured with an RAL 9016 (white) frame and an white melamine tabletop, it is sized for the 180 x 80 cm width. The 61-128 cm stroke applies with the decorative chrome ring fitted, but it is removable to provide a wider range for users as short as 150 cm. With a load capacity of 2x100 kg, the entire setup process takes 48 min.

The desk comes standard with a digital controller offering three memory positions. The tactile up and down buttons can be recognised by touch, making everyday operation simple and intuitive.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: The digital controller provides three memory positions together with collision and anti-tilt protection. Thanks to the tactile arrow buttons, the desk can be adjusted by feel alone.
  • Motor : ConSet’s efficient and reliable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
481-35 7W172 180-80S3 WM
Description:
Project desk 180-80 | White tops, White frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
2XXX-X2 XWXXXLifting column set, White€ 260,-€ 520,-
1X8X-35 XWXXX KITSet for X8X-35, white€ 132,-€ 132,-
2501-XX 7XPOWSPower Box S€ 128,-€ 256,-
2SQ138890Traversset,172 cm, neutral€ 45,-€ 90,-
2180-80S3 WMDesk top | 180x80 cm | White€ 71,-€ 142,-

Total
€ 1140,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
X8X-35 XWXXX KIT7117139,005704142162064
501-XX 7XPOWS25971,005704142161883
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
