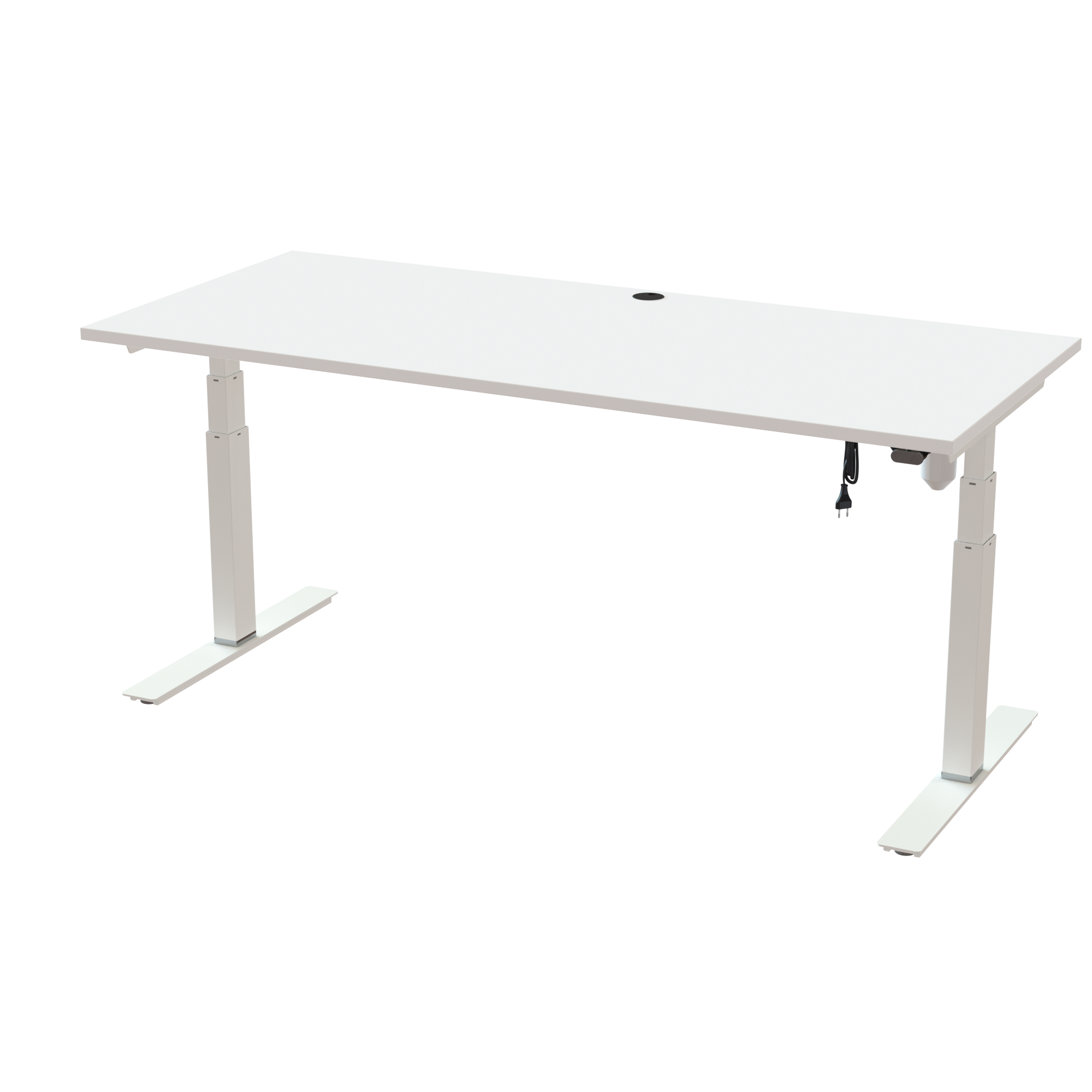

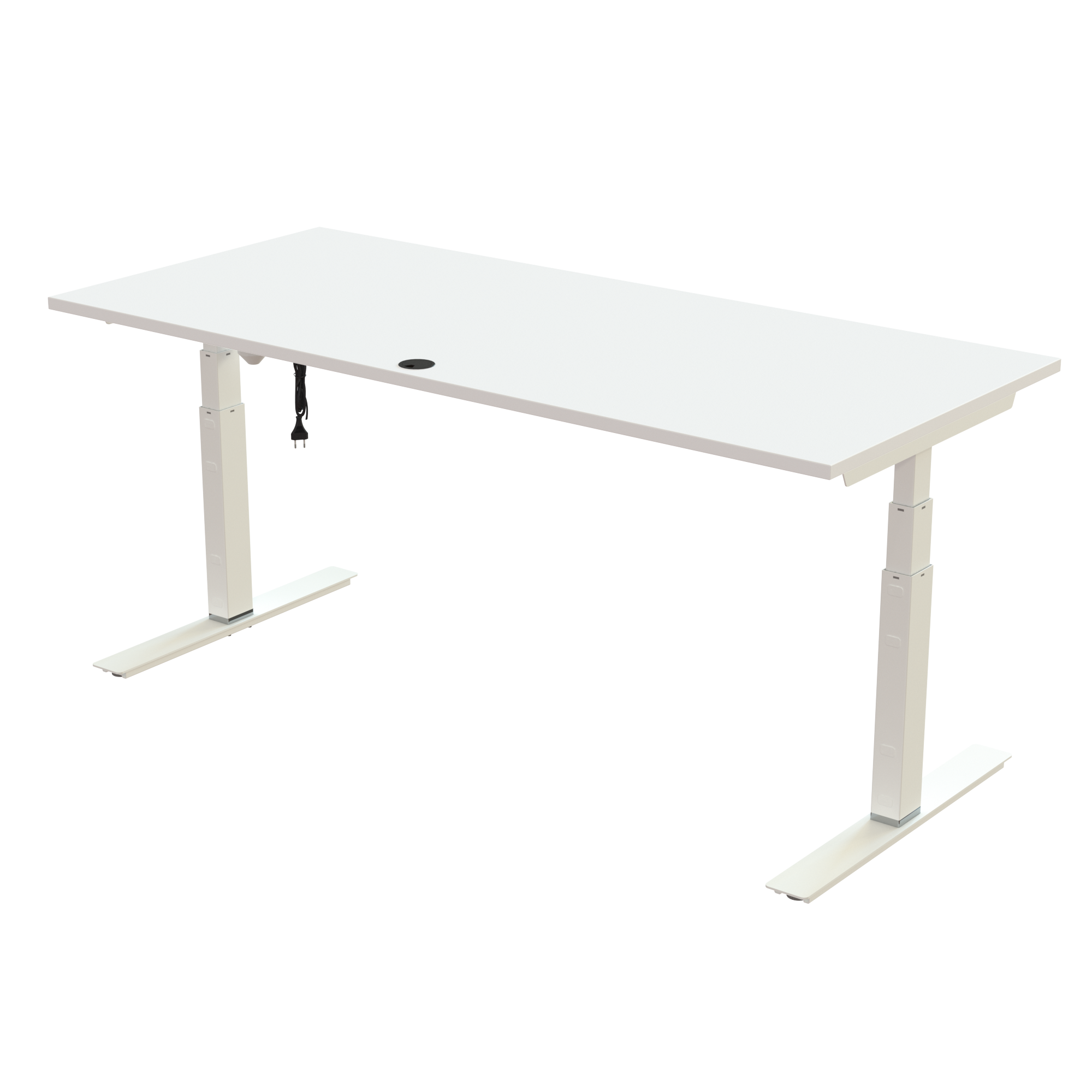

Height adjustable desk 180-80|White, White T-Frame

Ergonomic frame desk (180x80 cm) with a white melamine tabletop and cable tray on a white 501-35 desk frame
Ergonomic frame desk (180x80 cm) with a white melamine tabletop and cable tray on a white 501-35 desk frame
Height adjustable desk 180-80|White, White T-Frame
Height adjustable desk 180-80|White, White T-Frame
Height adjustable desk 180-80|White, White T-Frame
Height adjustable desk 180-80|White, White T-Frame
€ 570 ex VAT
Item no.: 501-35 7W172 180-80S3 WM

Built for flexibility, this electric sit-stand desk features a centered design that provides both stability and generous legroom for a 180 x 80 cm tabletop. The 3.5 cm chrome base ring gives access to the full 61-128 cm stroke, while removing it lowers the desk for users from 150 cm. It has a 100 kg load capacity, an 23 min assembly time, and is available in white with an melamine surface.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s robust and proven 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
501-35 7W172 180-80S3 WM
Description:
Height adjustable desk 180-80|White, White T-Frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XWXXXLifting column set, White€ 260,-€ 260,-
1501-XX XW075TFeet and brackets T80, white€ 143,-€ 143,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1180-80S3 WMDesk top | 180x80 cm | White€ 71,-€ 71,-

Total
€ 570,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX 7XPOWA221190,705704142108666
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
