Height adjustable desk 180-80|Beech, Silver T-Frame

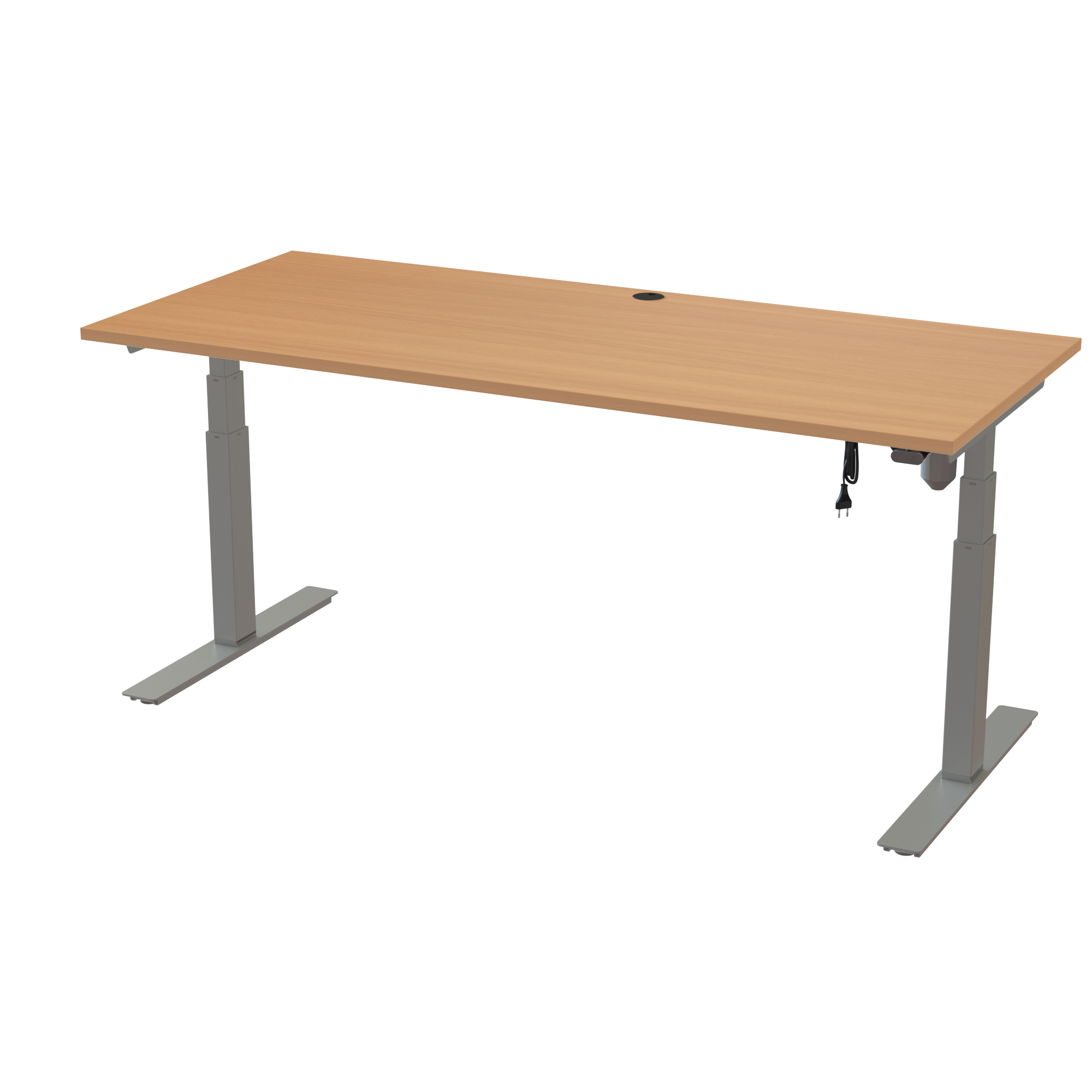

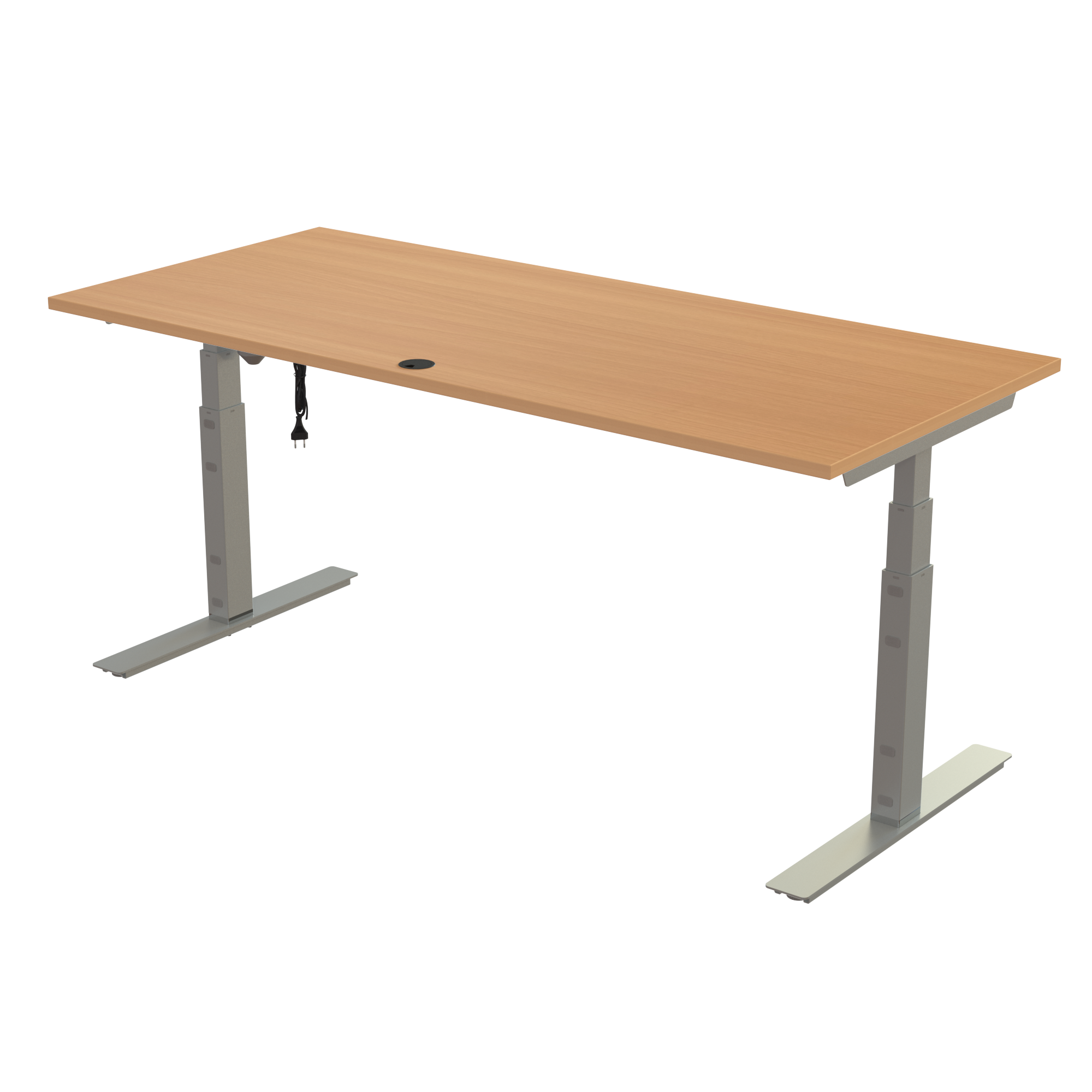

Ergonomic T-leg desk (180x80 cm) with a beech melamine tabletop on a silver 501-35 desk frame
Ergonomic T-leg desk (180x80 cm) with a beech melamine tabletop on a silver 501-35 desk frame
Height adjustable desk 180-80|Beech, Silver T-Frame
Height adjustable desk 180-80|Beech, Silver T-Frame
Height adjustable desk 180-80|Beech, Silver T-Frame
Height adjustable desk 180-80|Beech, Silver T-Frame
€ 570 ex VAT
Item no.: 501-35 7S172 180-80S3 BM

This standing desk combines clean lines with a centered foot and top arm design to provide generous legroom beneath a 180 x 80 cm tabletop. Its full 61-128 cm stroke is achieved with the 3.5 cm chrome base ring installed, while removing the ring lowers the starting height for shorter users. It features a 100 kg load capacity, an 23 min assembly time, and is supplied in beech with an melamine surface.

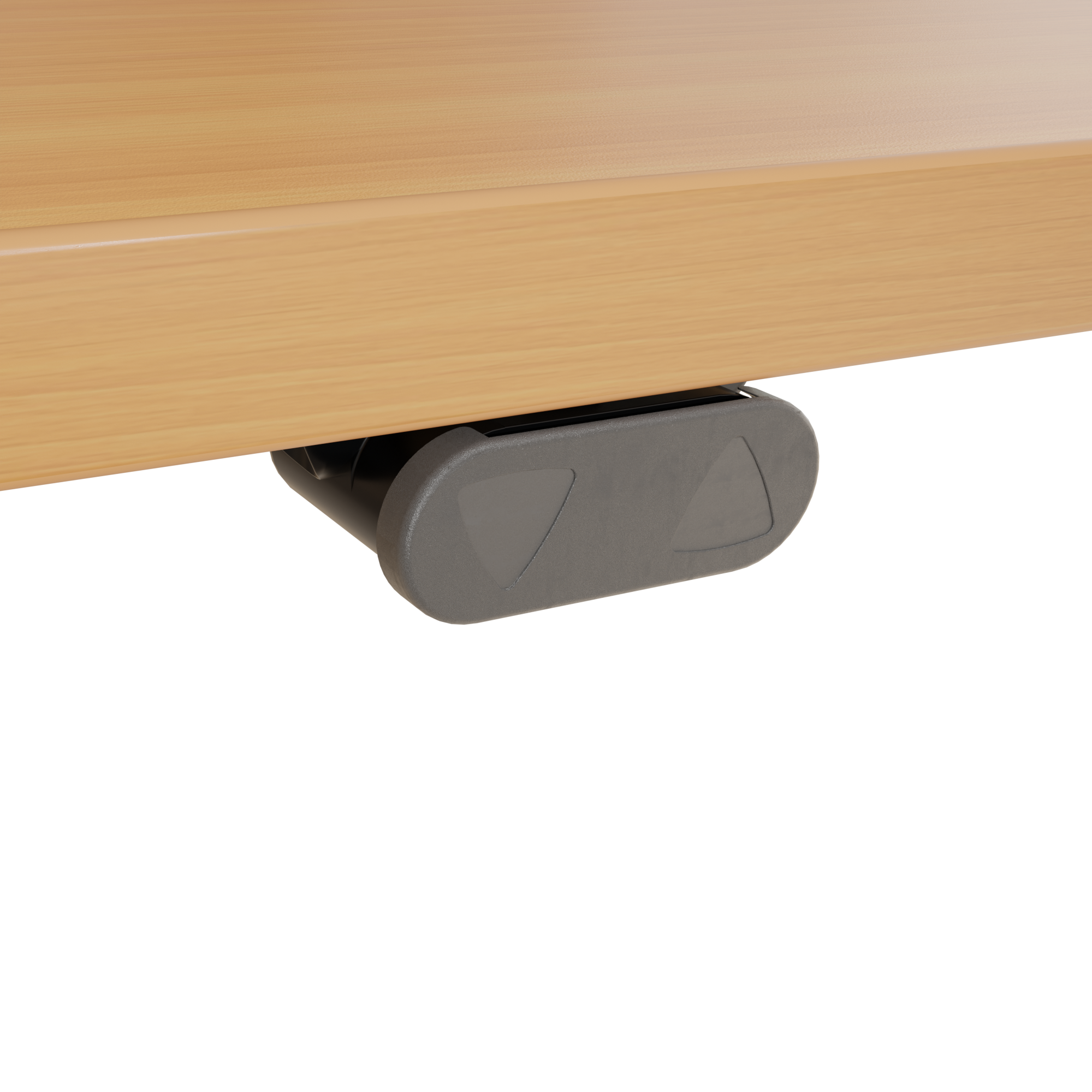

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.


Table top specifications

  • Dimensions : 180 x 80 cm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9006 (silver)
  • Height adjustment: 61-128 cm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s robust and proven 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components
Item no.:
501-35 7S172 180-80S3 BM
Description:
Height adjustable desk 180-80|Beech, Silver T-Frame
Stock status
AmountItem no.DescriptionUnit pricePriceStock
1XXX-X2 XSXXXLifting column set, Silver€ 260,-€ 260,-
1501-XX XS075TFeet and brackets T80, silver€ 143,-€ 143,-
1501-XX 7XPOWAPower Box A€ 51,-€ 51,-
1SQ138890Traversset,172 cm, neutral€ 45,-€ 45,-
1180-80S3 BMDesk top | 180x80 cm | Beech€ 71,-€ 71,-

Total
€ 570,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XSXXX77191715,005704142162484
501-XX XS075T881169,205704142162514
501-XX 7XPOWA221190,705704142108666
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
